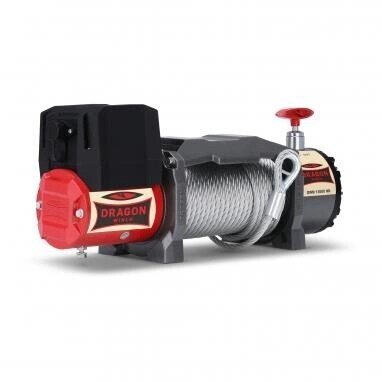

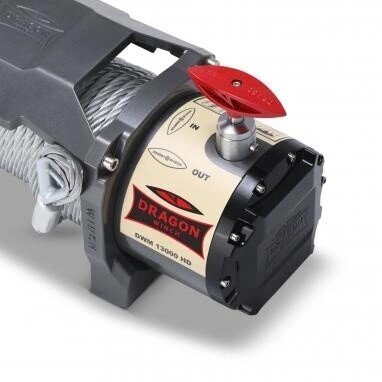

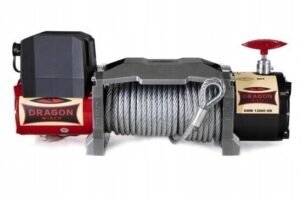

DWM 13000HD 5.9T 12V Dragon Winch winch 20m wire rope
low stock
Quantity in stock: 2
287.90€ net354.12€ gross
2 in stock
Individual shipping quote
Guaranteed manufacturer quality
Secure payments
Details
With a maximum towing capacity of 5897 kg, or 13,000 pounds, and a power output of 6.8 horsepower, it is currently The strongest model of the MAVERICK series, Closer in parameters to representatives of the TRUCK series. It performs perfectly as equipment for trailer and other roadside assistance vehicles.
- Description
- Product details
Technical data
| Application | off-road vehicles, commercial vehicles, trailer trucks, pickups |
| Voltage | 12 V |
| Power | 6.8 HP |
| Pull | 13,000 lb / 5,897 kg |
| Gearbox | three-stage planetary gearbox |
| Reduction | 265:1 |
| Type of brake | dynamic |
| Wire rope length | 30 m |

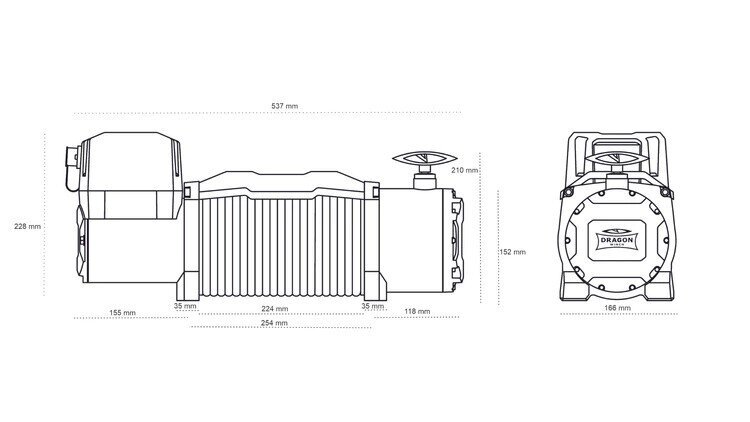

| Dimensions (L x W x H): | 535 mm x 160 mm x 242 mm |
| Mounting screw spacing: | 254 mm x 114 mm |
| Gross weight of the set | 43 kg |
| Warranty |
2 years |
Rope retraction speed and current consumption (first layer of rope on drum)
| Rope load | kg | no | 910 | 2722 | 5897 |
| Rope speed | m/min | 5,9 | 3,5 | 2,2 | 0,8 |
| Current consumption 12 V | amps | 58 | 130 | 230 | 420 |
| Current consumption 24 V | amps | 35 | 89 | 178 | 245 |
The pulling force depends on the rope layer
| Rope layer | 1 | 2 | 3 | 4 | 5 | |
| Rope pull | kg | 5897 | 4658 | 4009 | 3463 | 2889 |
| Amount of rope on the drum | m | 4,9 | 11 | 17,8 | 26 | 30 |
Included :
Winch
Steel Rope 9.5mm x 30m
Roller Guide
Wireless remote control
Wired remote control

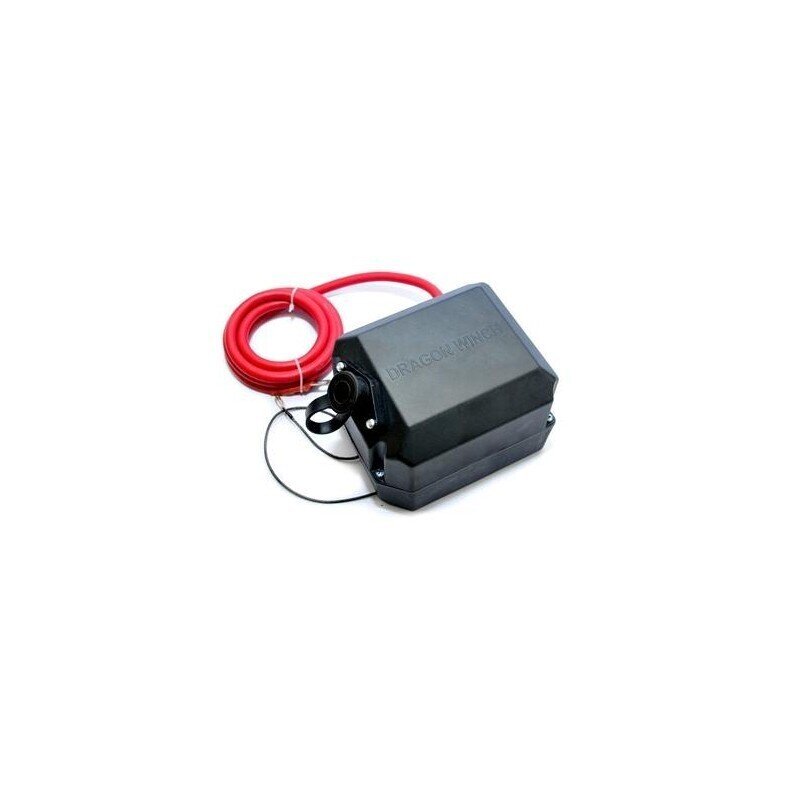

Plastic relay box with cables (can be mounted above the engine or anywhere after extending the cables)
Hook
Mounting screws
User Manual
WARRANTY 2 YEARS
| Weight | 42 kg |
|---|
